CS2 Lesson 21

Professor Abdul-Quader

Merge Sort

Demos

Questions?

  • Sorting Algorithms?
  • Merge Sort?

Announcements

  • Exam 3: next Thursday! Bring one page of notes.
  • Project 4: will be assigned next Monday, due Monday, May 12
    • Problem Set involving questions about Big Oh / running time.
  • Final Exam May 8 (12 - 2:30 PM)

Sorting

  • Previously seen: Bubble Sort, Selection Sort
  • Both are \(O(n^2)\).
  • Are all sorting algorithms \(O(n^2)\)?

Recursion

There are several options; most involve divide-and-conquer algorithms. Divide-and-conquer means we split the list into smaller parts, and (recursively) sort these smaller lists. There are several ways to do this, we will describe one: the merge sort algorithm.

Merge sort

  1. Split the list in half.
  2. (Recursively) merge sort each half.
  3. Merge the two halves to produce one, sorted list.

Pseudocode?

  • Just focus on the merge part.
  • Pseudocode for merging two sorted halves?
  • Running time?

Exercise

Implement the merge algorithm. Recall: given an array, sorted from \([start, mid)\) and \([mid, end)\):

  • Put them in order in \(tmp\) (from start to end).
  • Then copy back from \(tmp\) to \(array\).
public void merge(int[] array, int[] tmp, int start, int mid, int end)

Testing

Starter code Make sure your method works by testing the code with the testMerge method.

Mergesort pseudocode

Again: the merge sort algorithm works as follows:

  1. Split the list in half.
  2. Recursively merge sort each list.
  3. Merge the two halves.

Exercise

On paper: write pseudocode for the merge sort algorithm. (No need to re-write the merge method.)

Exercise

Implement the mergesort algorithm. Then make sure your method works by testing the code with the testSort method.

Running time

  • Suppose \(T(n)\) is the number of steps the merge sort algorithm takes on a list of size \(n\). Then notice: \[T(n) = 2T(n/2) + O(n).\]
  • Simplify: \(T(n) = 2T(n/2) + n\).
  • Can we find a formula for \(T(n)\)? Or at least its “Big Oh”?

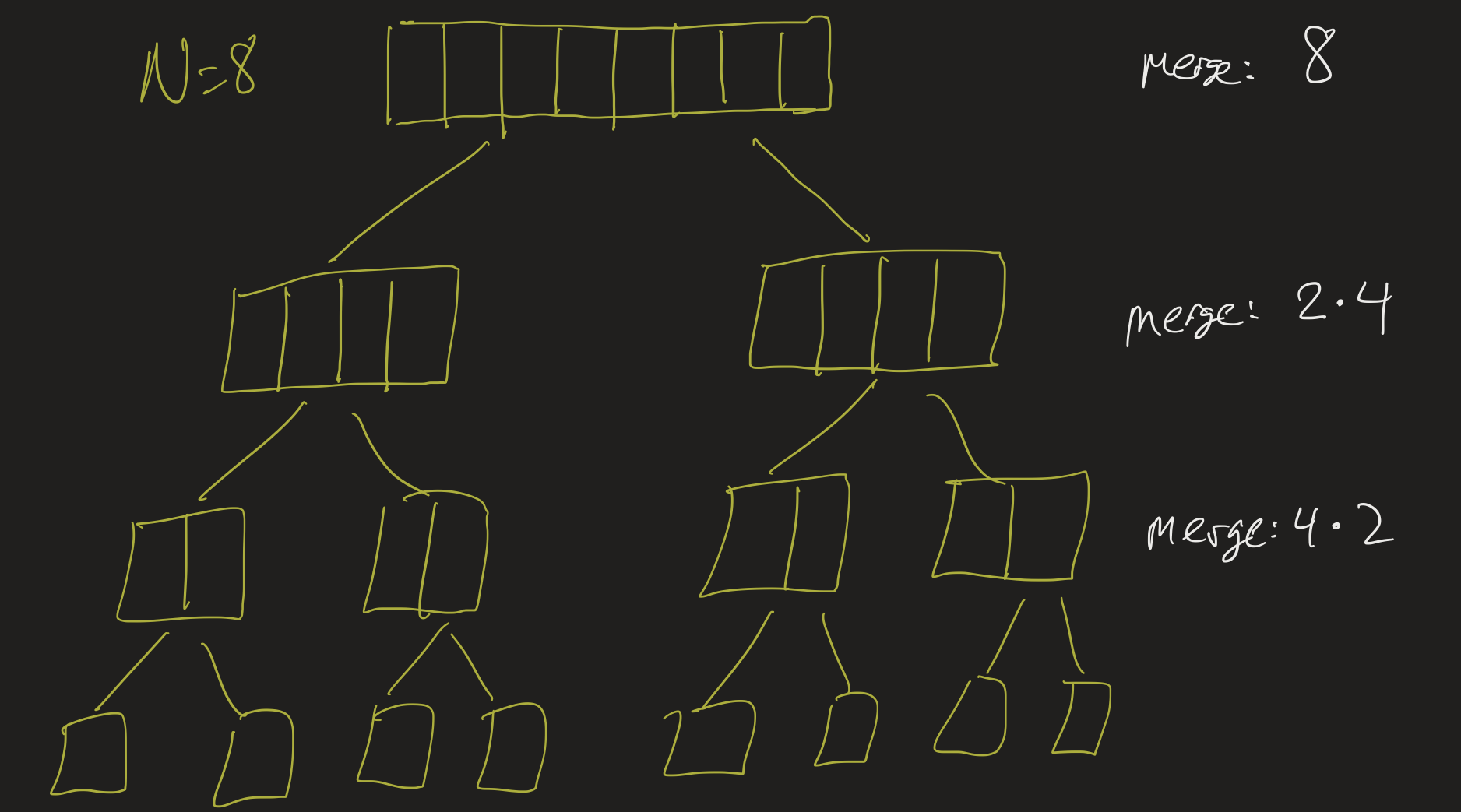

Example

\(n = 8\):

  • How many steps spent merging at each “level”?
  • How many “levels”?
  • Running time?

Details

  • \(T(8) = 2T(4) + 8\)
  • \(= 2(2T(2) + 4) + 8\)
  • \(= 4T(2) + 8 + 8\)
  • \(= 4(2T(1) + 2) + 8 + 8\)
  • \(= 8T(1) + 8 + 8 + 8\)
  • \(= 8T(1) + 3 \times 8\).

Notice: \(T(1)\) (the base case) is \(O(1)\), and if \(n = 8\), then \(3 = \log_2{8}\).

Code

  • In the code, let’s see if we can add a way to “count” the amount of merging that is done.
  • Each call to merge should take roughly (end - start) steps.

In general

  • In general, if \(N = 2^k\):
  • \(k\) “levels” of splitting
  • Each “level” does \(N\) steps of merging in total.
  • \(k \times N\) steps total!
  • \(k = \log_2(N)\), so…
  • \(O(N \log(N))\) steps total.

Project 3

Questions?

Whose turn?

Pseudocode for the game:

currentPlayer = one;
while (game is not over) {
  print "The board currently looks like (blah)"
  print "Player ???, make a move"
  row = currentPlayer.chooseRow(board)
  stones = currentPlayer.chooseStones(board, row)
  update board
  if (currentPlayer == one) {
    currentPlayer = two;
  } else {
    currentPlayer = one;
  }
}

Solution: Modular design

public String playerName(Player current)
  • If current == one, return “Player One”, otherwise return “Player Two”
  • play method: print(playerName(currentPlayer) + ": make a move");

Determine winner

After loop:

  • Determine winner: who took the last turn?
  • Is it the currentPlayer?
    • Depends on when you do the “swap turn” part.
  • Test out your game. See if it gives the correct answer.

Data structures

  • A data structure is a way of organizing data in memory. We have seen two important kinds of data structures already: arrays and ArrayList.
  • A linked list is another kind of list structure.

Linked List

  • Data organized into nodes.
  • Each node has a data item and a link to the next node.
  • Last node links to null.

Upcoming

  • No more async lessons / small groups
  • Sign up for a demo (Monday or the following monday) if you haven’t!
  • Exam 3 on Thursday
  • Unrelated: RSVP for the Math/CS alumni reunion (May 3 2-3:30 PM).
