Calculus II Lesson 11: Arc Length

  1. Presentations
  2. Upcoming
  3. Volumes
    1. Activity
  4. Arc Length
    1. Example
    2. Exercises
    3. Catenary Arches

Presentations

Upcoming

Volumes

More complicated regions:

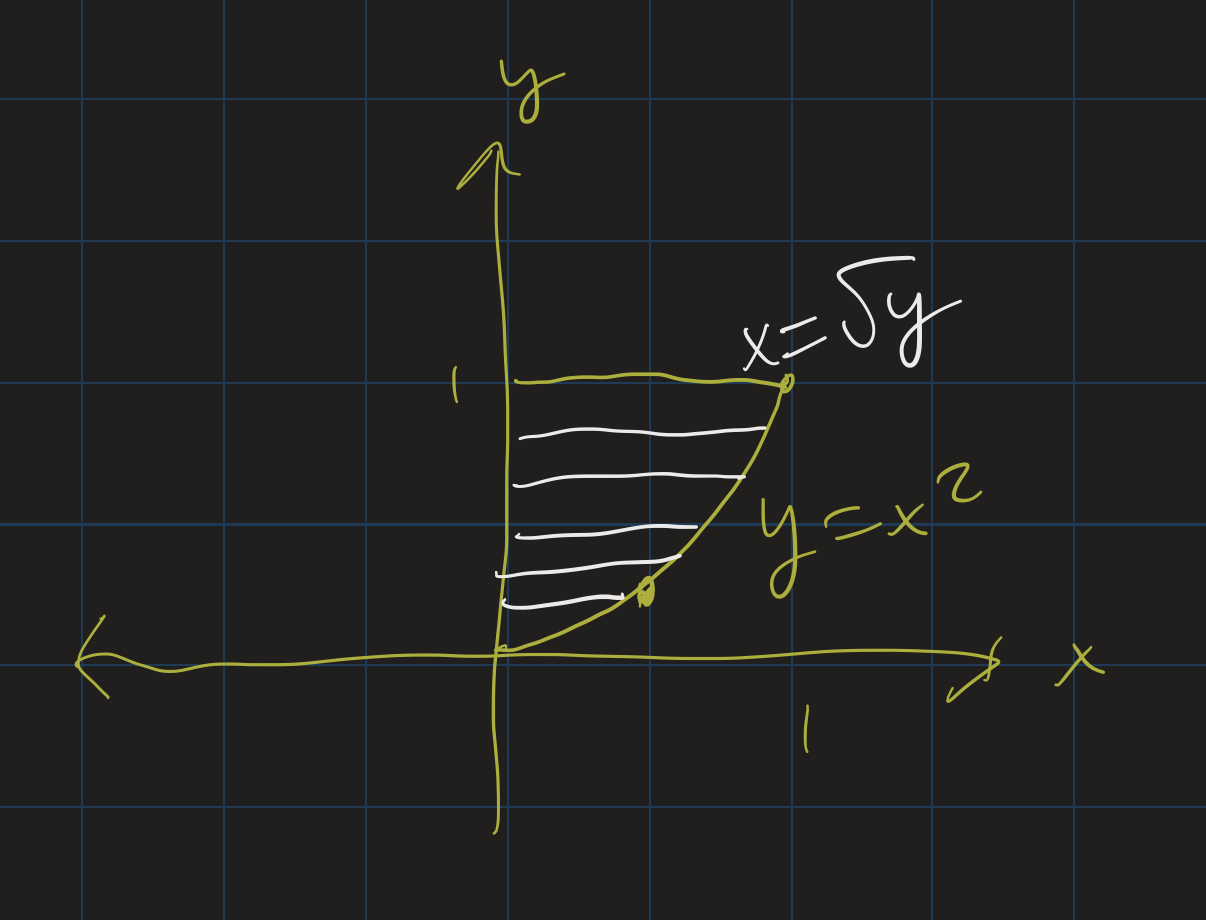

Disk method over the y-axis

So we have actually 6 possible formulas:

  1. $V = \int_a^b \pi (f(x)^2) dx$.
  2. $V = \int_a^b \pi (g(y)^2) dy$.
  3. $V = \int_a^b 2\pi x f(x) dx$.
  4. $V = \int_a^b \pi (f(x)^2 - g(x)^2) dx$.
  5. $V = \int_a^b \pi (g(y)^2 - h(y)^2) dy$.
  6. $V = \int_a^b 2\pi y g(y) dy$.

Activity

Consider the following problems:

  1. Revolve the region bounded by $y = x$, $y = x^2$, $x = 0$ and $x = 1$ around the $x$-axis.
  2. Revolve the region bounded by $y = x^2$, $x = 0$, $x = 2$ and $y = 4$ around the $y$-axis.
  3. Revolve the region bounded by $y = x^2$, $x = 0$, $x = 2$ and $y = 0$ around the $y$-axis.

In small groups: For each problem:

Arc Length

Our next application of integration comes from arc length. The concept of arc length is fairly simple: if we follow along the path of a curve, how much are we actually moving? That is, if we are in a car, driving along a path, how many miles are we actually putting on our car? Not the “straight-line distance” between our starting and ending points, but the actual, total amount we are driving.

Suppose our path is the graph of a function $y = f(x)$ between two points $x = a$ and $x = b$. We can estimate the length of our path by splitting up that interval into $n$ equally spaced line segments, calling the endpoints $x_0, x_1, \ldots, x_n$.

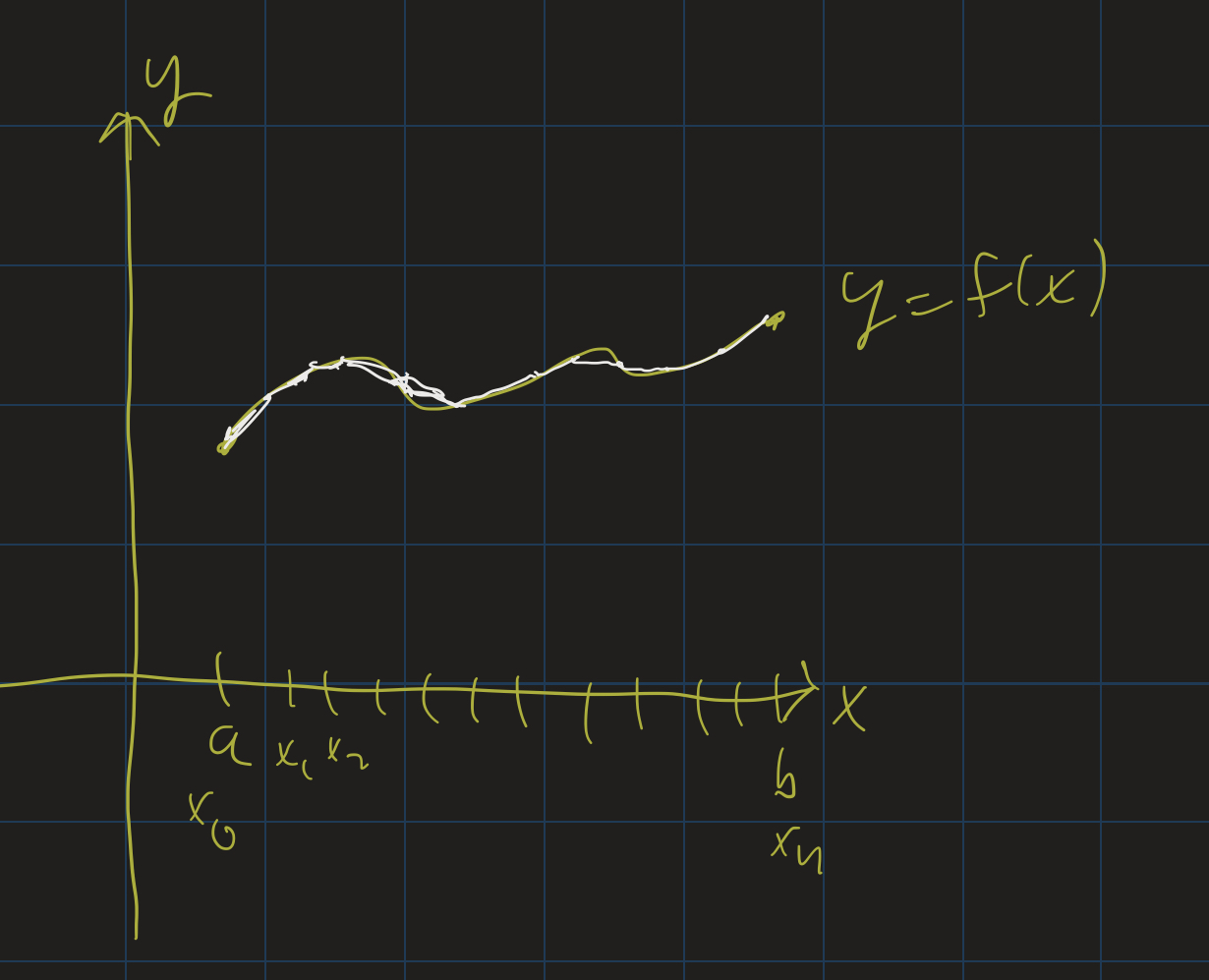

Estimating the arc length of a curve by breaking it into segments

The distance between two consecutive points on the curve is given by the distance formula: $d = \sqrt{(\Delta x)^2 + (\Delta y)^2}$. So the total length of the curve is approximated as

\[s \approx \sum_{i=1}^n \sqrt{(\Delta x)^2 + (\Delta y)^2}\]

(We use $s$ as our “arc length” variable.) As $n \rightarrow \infty$, these approximations become better and better. It’s not clear, though, what the integral ends up being, so we need to do a bit more algebra first. If we want to end up with an integral, we need $\Delta x$ by itself (outside of the square root), so let’s factor that out:

\[\sqrt{(\Delta x)^2 + (\Delta y)^2} = \sqrt{(\Delta x)^2 (1 + (\frac{\Delta y}{\Delta x})^2)}\]

Then we can take the square root of $(\Delta x)^2$, and we get:

\[s \approx \sum_{i=1}^n \sqrt{1 + (\frac{\Delta y}{\Delta x})^2} \Delta x\]

Now as $n \rightarrow \infty$, the $\sum \rightarrow \int$, $\frac{\Delta y}{\Delta x} \rightarrow f^\prime(x)$, and $\Delta x \rightarrow dx$, and so we get our integral:

\[s = \int_a^b \sqrt{1 + (f^\prime(x))^2} dx\]

Example

Here we go through an example of finding the arc length of the “quarter circle” given by $y = \sqrt{1 - x^2}$ from $x = 0$ to $x = 1$.

First we need to compute $\sqrt{1 + (f^\prime(x))^2}$. So we compute $f^\prime(x)$ using the power rule and chain rule:

\[f^\prime(x) = \frac{-2x}{2\sqrt{1 - x^2}} = -\frac{x}{1 - x^2}\]

So $(f^{\prime}(x))^2 = \frac{x^2}{1 - x^2}$.

Then we need to see what $1 + (f^\prime)^2$ is. So we add 1 to the above:

\[1 + \frac{x^2}{1 - x^2} = \frac{(1 - x^2) + x^2}{1 - x^2}\]

which is just $\frac{1}{1 - x^2}$.

Now we can integrate:

\[s = \int_0^1 \frac{1}{\sqrt{1 - x^2}} dx\]

If you don’t recognize this (I don’t blame you), it’s an Inverse Trig integral. This turns out to be $\left.\arcsin(x)\right|_0^1$, or just $\arcsin(1) - \arcsin(0)$. Since $\sin(\pi/2) = 1$, $\arcsin(1) = \pi/2$. And since $\sin(0) = 0$, $\arcsin(0) = 0$. So our answer is $\frac{\pi}{2} - 0$, or just $\frac{\pi}{2}$.

Exercises

Take a look at Exercises 165-167, 171-175 in the textbook to practice these. You may wish to use a calculator to estimate these integrals. There are several available online, including WolframAlpha and SymboLab.

Catenary Arches

In the above video, I go through an example of a curve that has a really fascinating property: the area below the curve, between any two points, divided by the length of the curve between those two points, is constant! That is, the area divided by the arc length does not depend on which two points you pick. You’ll always get the same ratio of area over arc length.

This curve is called a catenary curve. Catenary curves are the curves formed by a hanging chain supported on its ends. Catenary curves are often found in suspension bridges.

If you ever go to Spain, you may see catenary arches in some of the architecture of the Spanish architect Antoni Gaudi. Catenary arches have the ability to support large amounts of weight while being constructed from relatively light material.

The catenary curves I studied in the video above are of the form $f(x) = a \frac{e^\frac{x}{a} + e^{-\frac{x}{a}}}{2}$, where $a$ is some constant. I looked, specifically, at $a = 2$. The graph of $f(x) = e^{\frac{x}{2}} + e^{-\frac{x}{2}}$ is given below:

I encourage you to go through the video above and follow along the steps yourself. As an exercise, compute the arc length from $x = -1$ to $x = 1$ of the catenary curve given by:

\[f(x) = 10 \frac{e^{\frac{x}{10}} + e^{-\frac{x}{10}}}{2}\]

Use a calculator (graphing or online) to estimate your answer as well as the answer to the problem done in the video. You may be surprised to see that as $a$ increases, the arc length of the catenary curve decreases!
